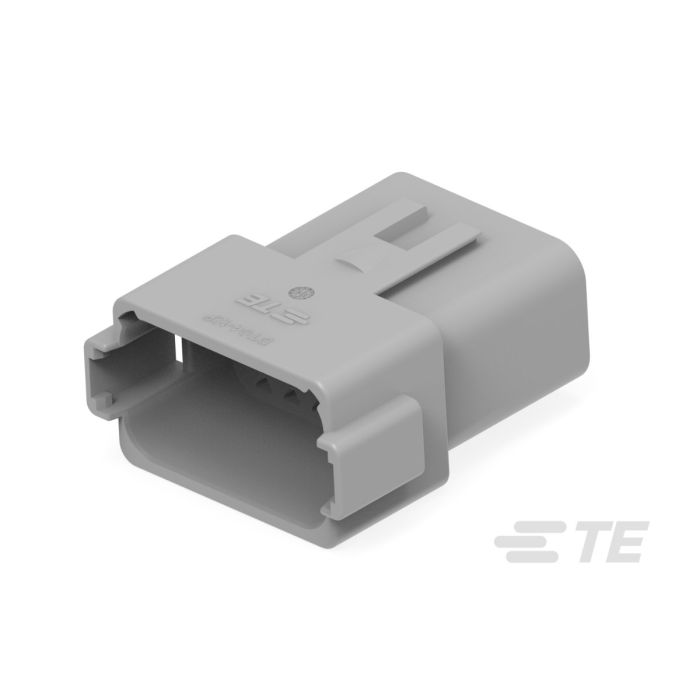

Deutsch DT04-12PA-P026 Receptacle

Name: Deutsch DT04-12PA-P026 Receptacle
Brand: Deutsch
SKU: DT04-12PA-P026
Price: 25.08 AUD
Availability: InStock

Be the first to review this product

Special Price $25.08 Regular Price $26.13

In stock

SKU

DT04-12PA-P026

Deutsch DT04-12PA-P026 Receptacle is available to buy in increments of 1

For 12 volt vehicle circuits, the DT04-12PA-P026 is a receptacle connector. Specs: DT Series.

Details

Deutsch DT04-12PA-P026 Receptacle

The Deutsch DT04-12PA-P026 Receptacle is part of the genuine Deutsch DT Series sealed connector range.

Features

Part of the genuine Deutsch DT Series, the industry standard sealed connector system for automotive, truck, marine and off-road wiring
Environmentally sealed to IP67 when fully assembled with matching contacts, seals and wedgelock
Uses size 16 contacts for 0.5 - 2.0mm² (14 - 20 AWG) wire, rated up to 13A per contact
Operating temperature range of -55°C to +125°C

Specifications

Part number: DT04-12PA-P026
Brand: Deutsch

Supplied by Ozautoelectrics, an established Australian auto electrical parts supplier. Retail and trade customers welcome, with orders dispatched Australia-wide.

More Information

More Information
Manufacturer	Deutsch
Cavities	12
Series	DT Series
Contact Size	16 (13 Amps)
Current Rating (Amps)	13 Amps
mpn	DT04-12PA-P026
